2425 Winding Clutch
2425 Winding Clutch

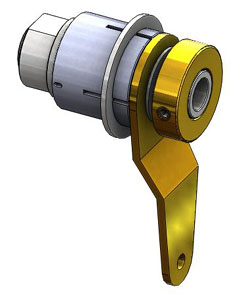

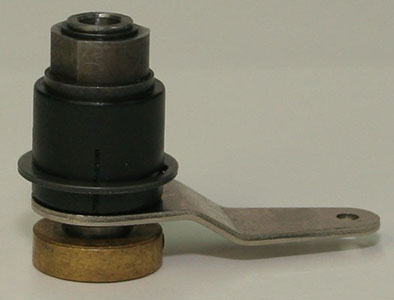

The Tiny-Clutch 2425 Winding Clutch is based off of our AD50 Autodisconnect Clutch. This clutch features a larger 5/8" | 15.9mm plain drum with two flats for the output hub, allowing quick, easy slip fitting of the driven load. This clutch also has the drag arm reversed, to allow different mounting clearances. If you have special needs for your application please Let Us Know.

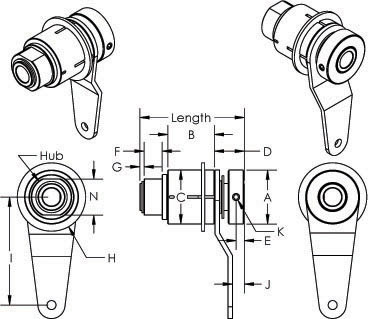

| Specifications: | Options: | ||
| Max Torque | 15 in/lbs | 1.7 Nm | Bore | 6mm |
| Length | 1.45 in | 36.8 mm | Mounting | Set Screw |
| Hub | 0.562 in | 14.3 mm | Drive | Counter Clockwise |
| Dimension A | 0.75 in | 19.1 mm | Input | Shaft |
| Dimension B | 0.65 in | 16.5 mm | Hub Type | Plain Drum With Two Flats |
| Dimension C | 0.75 in | 19.1 mm | Add-Ons | Arm Reversed |
| Dimension D | 0.42 in | 10.7 mm | ||
| Dimension E | 0.12 in | 3.0 mm | ||
| Dimension F | 0.25 in | 6.4 mm | ||
| Dimension G | 0.06 in | 1.5 mm | ||
| Dimension H | 0.95 in | 24.1 mm | ||
| Dimension I | 1.50 in | 38.1 mm | ||
| Dimension J | 0.17 in | 4.3 mm | ||
| Dimension K | 6-32 Set Screw | ||
| Dimension N | 0.50 in | 12.7 mm | ||
